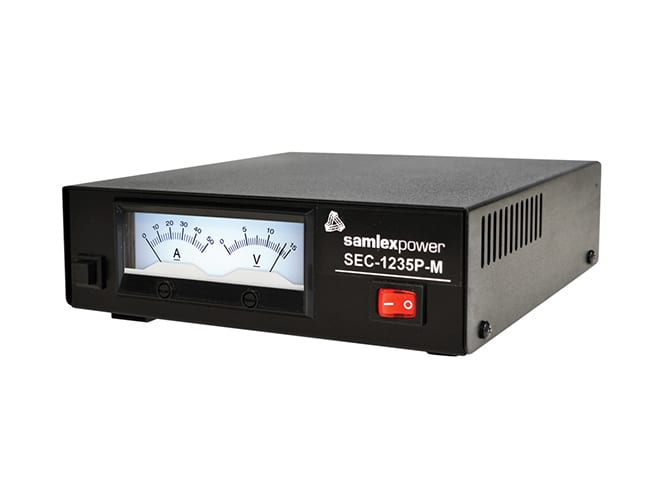

Samlex SEC-1235P-M 13.8 Volt at 30 Amp

Availability:

In stock


Efficient 13.8V/30 Amp switching power supply with backlit meter that provide reliable, clean and highly filtered power specifically developed for demanding radio equipment.





265

  • USD: 278 $
  • SEK: 2,832 kr.

In stock

The new technologically advanced SEC-1235P-M desktop power supplies are lighter, quieter, power factor corrected, and have a universal AC input of 100 to 240 Volts, 50/60 Hz. These premium, high efficiency power supplies are UL safety listed and CE certified to the newly released IEC 62368-1 safety standard for use all over the globe.

These advanced switch-mode DC power supplies sport the newly designed backlit dual analog meters and are designed specifically for use with land mobile radio. The power supplies produce clean reliable power and new circuit innovations minimize output voltage ripple and RFI. The AC-DC power supply conforms to FCC Part 15(B), class B digital device, and Efficiency Level VI.

Description

Input Voltage 115-230 VAC
Output Voltage 13,8 VDC
Dimensions 190 x 180 x 60 mm
Output Current continuous 30A
Current Limnit 36A
Fuse Rating 6,3Amps
Weight 1,67 Kgs

Product benefits

  • Universal Input: 100 to 240 VAC, 50/60 Hz
  • Power Factor Corrected
  • Backlit dual analog meters
  • Complies with Minimum Energy Performance Standard (MEPS) for external power supplies
  • Efficiency Level VI
  • Advanced switch-mode technology
  • Reliable power with minimum weight and size
  • Circuit innovations minimize output voltage ripple and RFI
  • UL listed to both USA & Canadian safety standards, CE certified for use all over the globe
  • Product documentation

Downloads



SKU: SEC1235P-M Categories: , ,
Weight 1.67 kg
