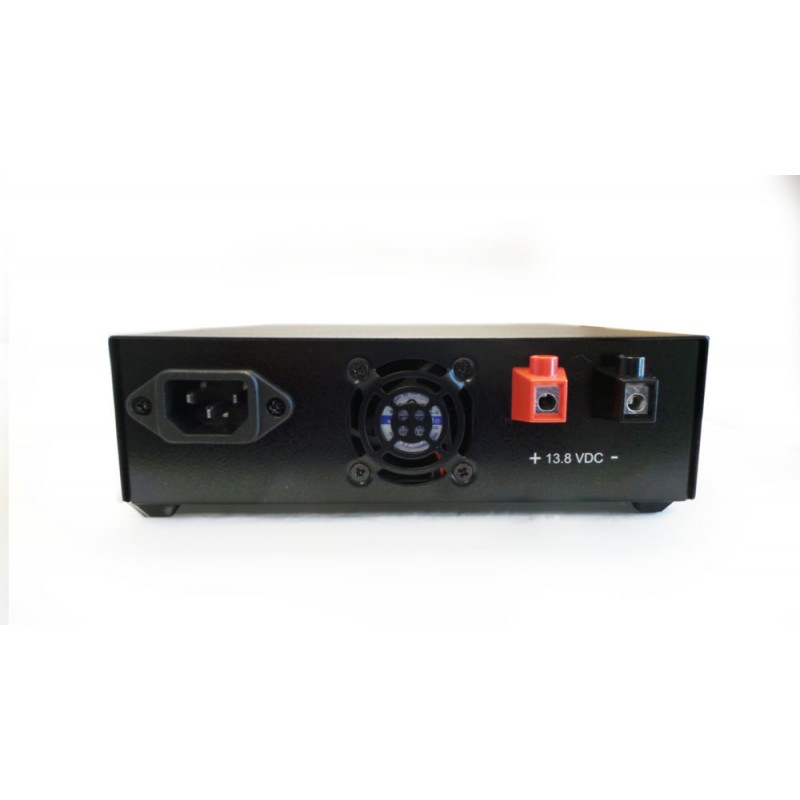

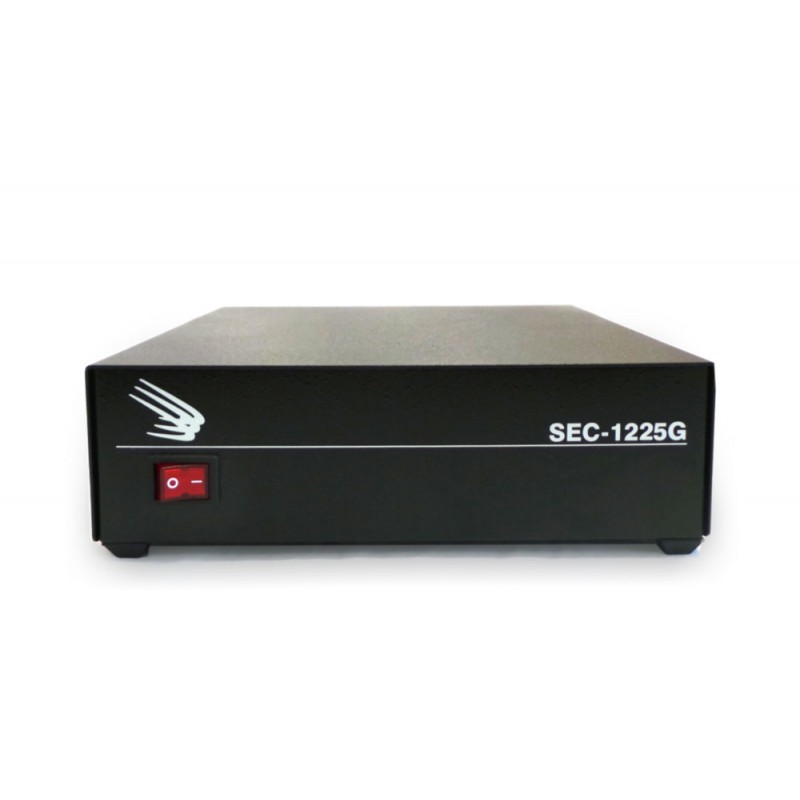

Samlex SEC-1225G 13.8 Volts at 25 Amp
In stock
Efficient 13.8V/23A power supply with reliable, clean and highly filtered power specifically developed for demanding radio equipment.Power Supplies
148 $
In stock
This highly efficient AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 115 or 230 Volts, 60-50 Hz. These advanced switch mode DC power supplies were designed specifically for use with land mobile radio. The power supplies produce clean reliable power and are highly filtered to suppress RFI.
The unit comes with a detachable power supply cord with “SCHUKO” plug. Features include overcurrent, short circuit, overvoltage and over temperature protection. The AC-DC power supply conforms to IEC 62368-1:2018 safety standards and EN55022 class B, EN6100-3-2,3 and EN61000-4-2,3,4,5,6,8,11 EMI/EMC standards.
Description
| Input Voltage | 115-230 VAC |
| Output Voltage | 13,8 VDC |
| Dimensions | 190 x 180 x 60 mm |
| Output Current continuous | 25A |
| Current Limnit | 27A |
| Fuse Rating | 4 Amps |
| Weight | 1,75 Kgs |
Product benefits
- Advanced switch-mode technology
- Reliable power with minimum weight and size
- Circuit innovations minimize output voltage ripple and RFI
- 115-230Vac input 50/60Hz
- Power factor correction
- 2 year warranty
Product documentation
| Language | File | Type |
| n.a. | SEC-1225G.jpg | Image |
 |
SEC-1225G_slicksheet.pdf | Specifications |
|
Manual SEC 1212G-1225G-1235G-2412G | Manual |
| Weight | 2.1 kg |
|---|---|
| Dimensions | 25.3 × 24 × 6.6 cm |
